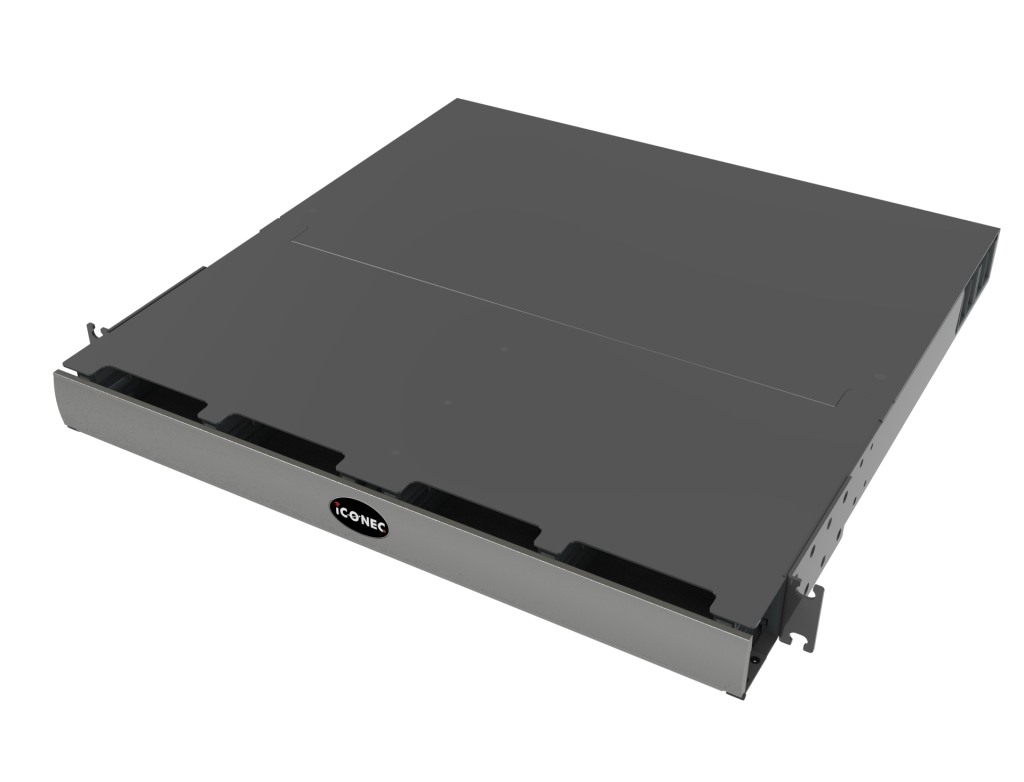

UDF OPTICAL FIBER PATCH PANEL SYSTEM

UDF series optical fiber distribution frame, tailored for high-density application scenarios in data centers, can be provided in 1U and 4U versions; with LC connectors, 1U 144-core optical fiber or 72-port MPO can be realized, 4U 576-core optical fiber or 288-ports MPO wiring density; suitable for standard 19-inch equipment cabinet or rack installation.
In order to meet the future development and cope with the trend of ultra-high density in data centers, UDF distribution frames use MDC small connectors to achieve 1U 432-core optical fiber distribution density without gaps; to optimize the cost per U of space for users. While satisfying the smooth upgrade of network bandwidth, the entire UDF series also satisfies the smooth upgrade of spatial density.

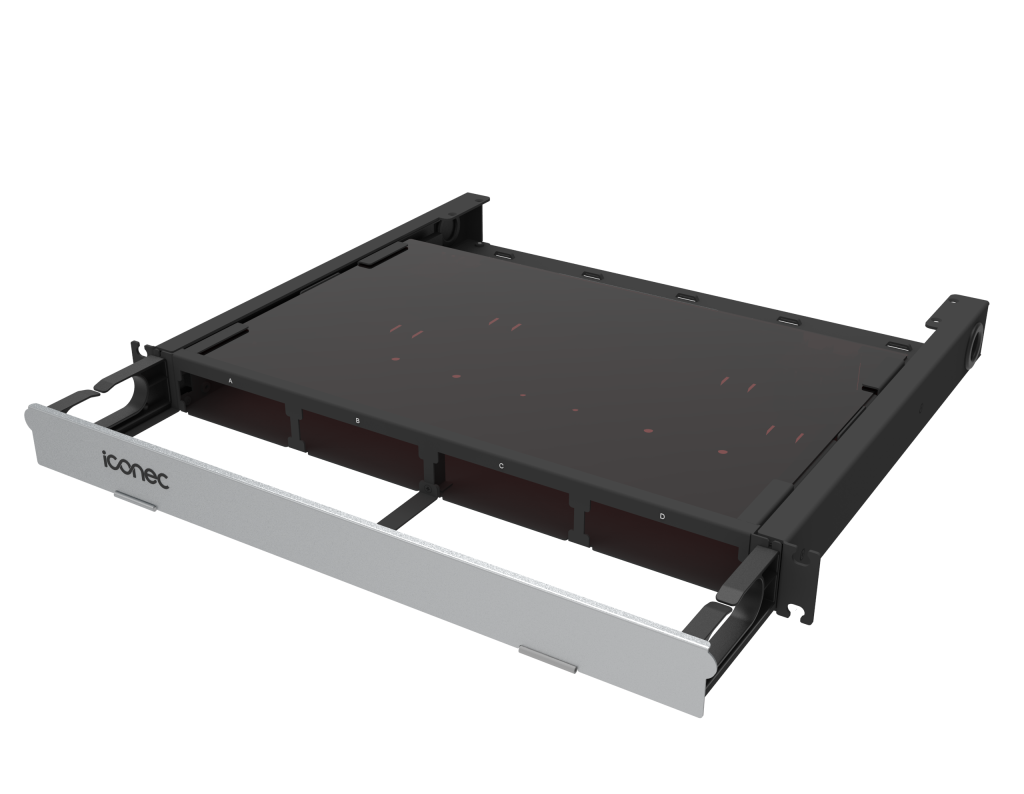

G4S OPTICAL FIBER PATCH PANEL

1U space can achieve 96 cores
Available in 1U, 2U, 4U and other versions
High density, modular, easy to scale and easy to upgrade smoothly
With independent intellectual property rights and patent certificates

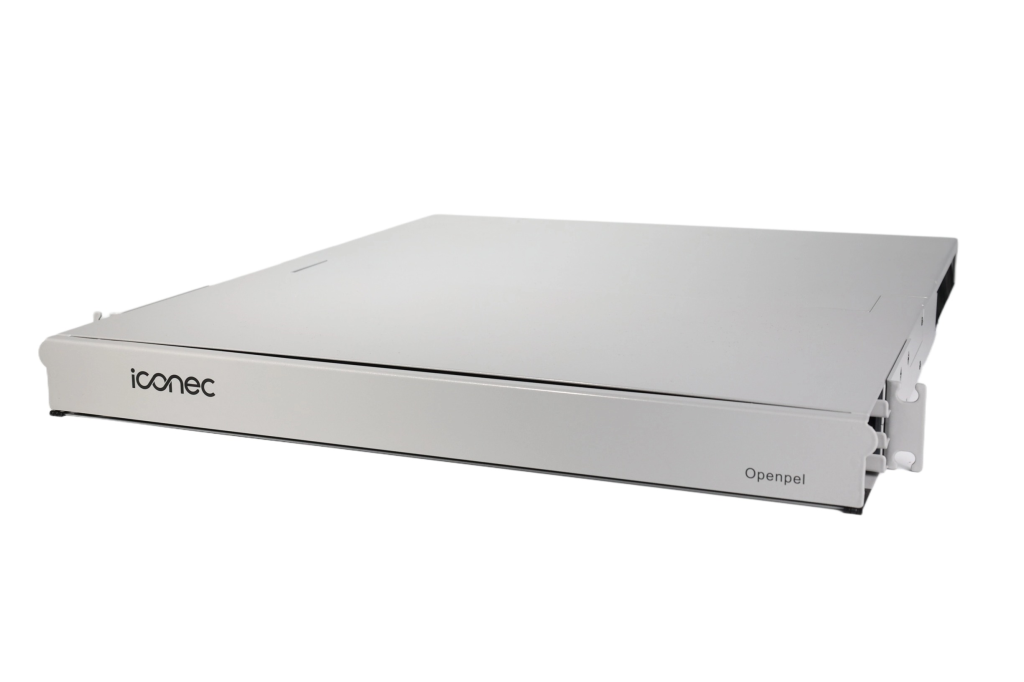

Openpel光纤配线架

Openpel系列光纤配线架为数据中心及楼宇室内布线提供互联或交叉连接，以及实现主干光缆与配线区结构化布线，主要应用场景为：数据中心 MDA、HDA 、EDA等区域的光纤连接及配线管理。模块化设计，能够实现8芯、12芯、16芯、24芯多种模块兼容。
